Hey Guys,
New to the forum, I have a '90 Subaru Liberty GX wagon.

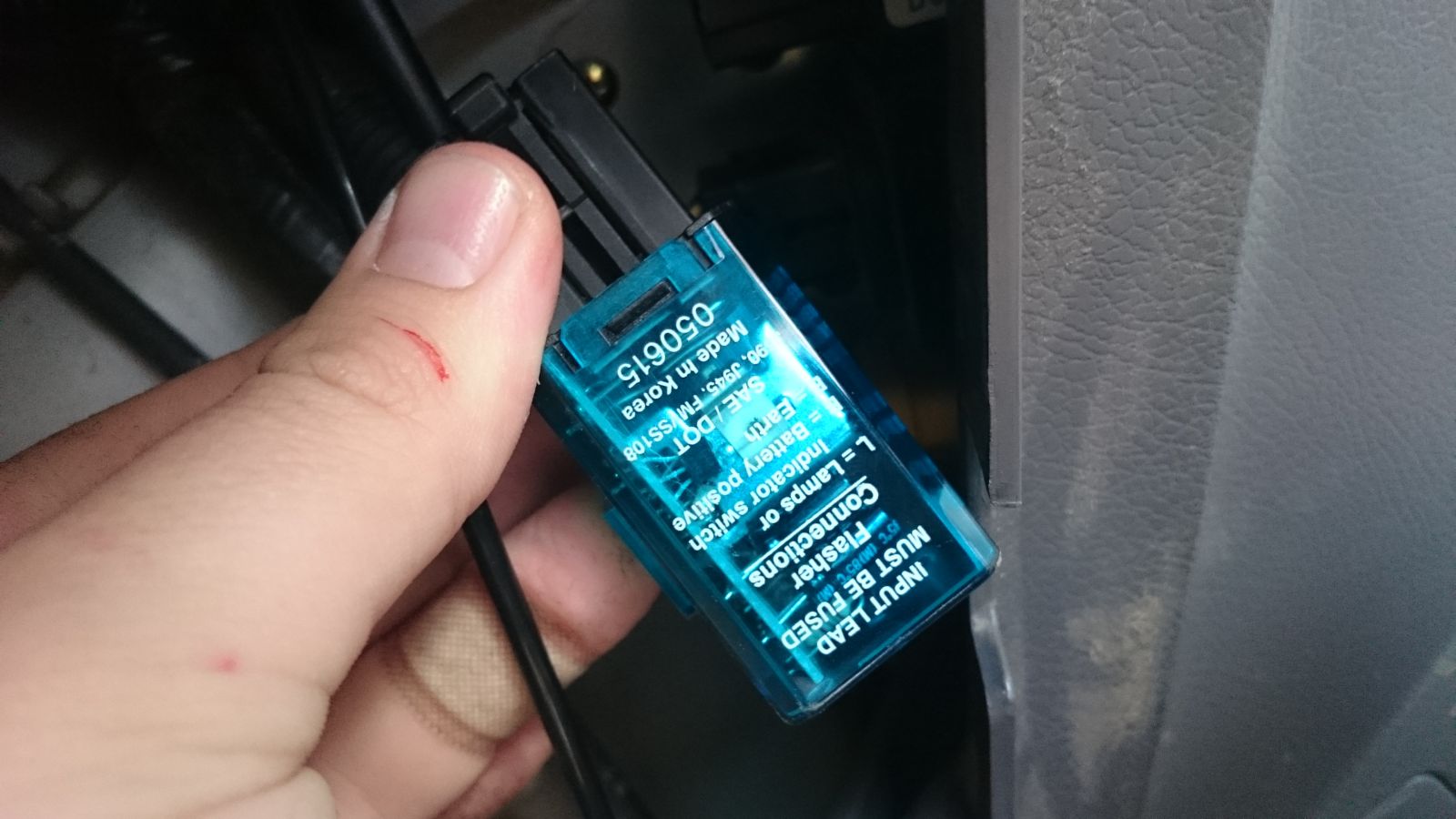

I recently had to replace my flasher unit and had a lot of trouble finding where it was located, so I took some photos to upload here. Hope it helps someone out! It's really easy to do yourself and you save shelling out for a mechanic.

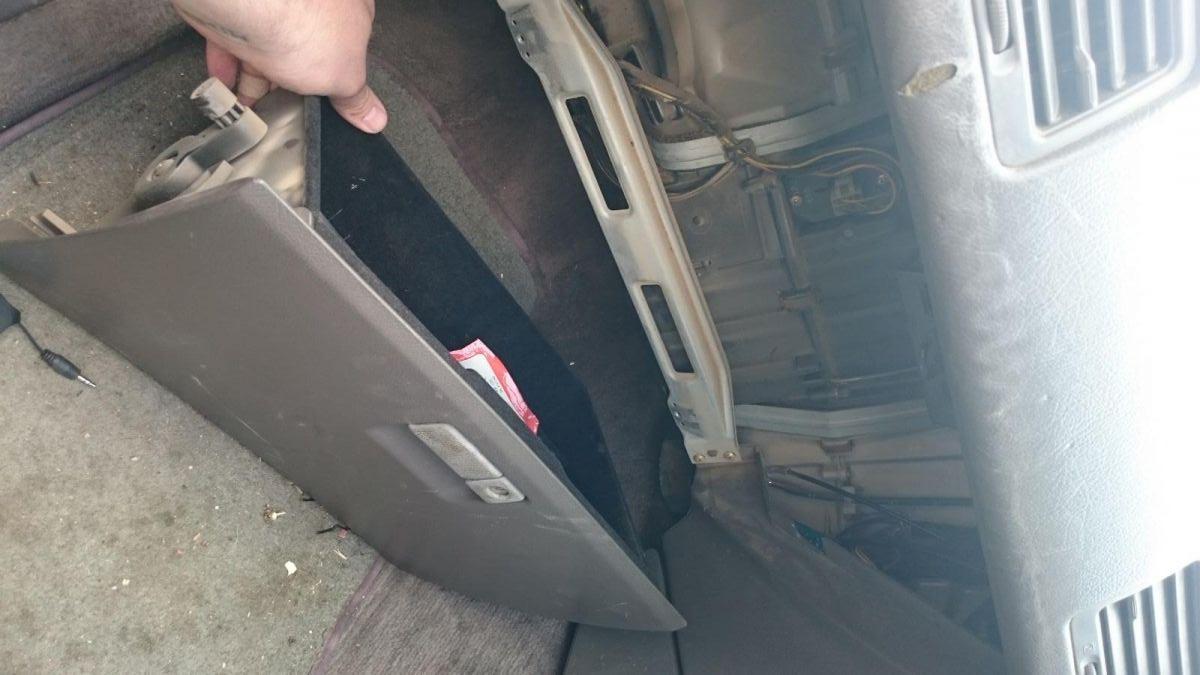

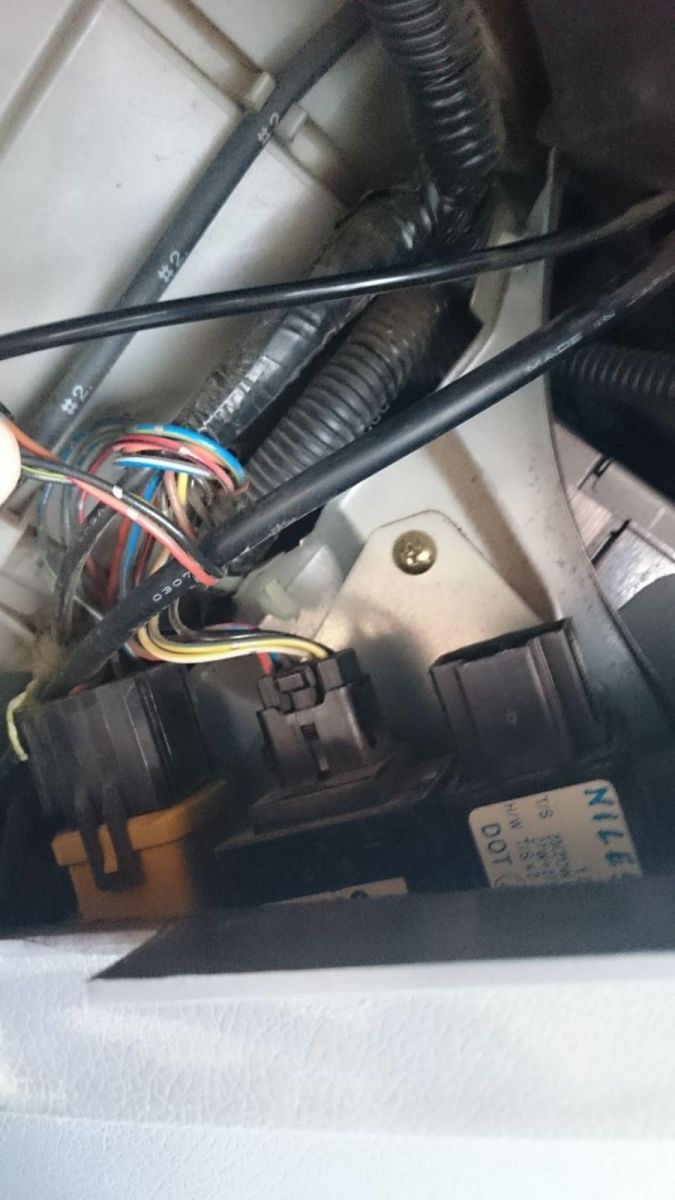

The unit on my model is located up under the dash behind the glovebox, pretty much next to the tape deck. You'll see three inputs, the flasher unit is located closest to you.
Just pop the cabling out of the input that's there and plug it into the new one you get, It'll just dangle there but it's behind the glovebox so it's all g.
Indicators/Hazards have failed - HELP!
Started by Samwise, Sep 05 2013 11:59 AM
45 replies to this topic
#41
Posted 13 April 2016 - 11:10 AM
#42
Posted 13 April 2016 - 12:34 PM
That's not the flasher unit, that's the airbag PR solenoid. Be careful handling that!
#43
Posted 13 April 2016 - 02:54 PM
Are you sure? I changed it and now the indicator is working perfectly..?
#44
Posted 13 April 2016 - 04:46 PM
Trolled!
OEM+
#45
Posted 13 April 2016 - 05:14 PM
That's not the flasher unit, that's the airbag PR solenoid. Be careful handling that!
Idjit
If I told you I was a compulsive liar, would you believe me?
#46
Posted 13 April 2016 - 05:17 PM
Haha phew, thought I was gunna cop a face full!!
