H6 engine

Started by Blaeven, Nov 25 2008 03:56 PM

«
Prev

Next
»

Please log in to reply

710 replies to this topic

#321 Blaeven

The Renowned

Members
1,400 posts

Gender:Male
Location:Sydney

Posted 03 February 2009 - 11:18 AM

oh how i love spam...

i'm back in sydney now...

on the first day miles got heaps done...

pics (56k = fail):

exhaust and driveshaft out
Posted Image

old gearbox still in... almost ready to come out
Posted Image

3.9 gearbox out, engine somewhat stripped
Posted Image

engine stripped
Posted Image

coming out
Posted Image

new motor

new box 4.11 gen3 RX box (according to miles, as strong as the gen2 GT-B box)
Posted Image

4.11 diff in
Posted Image

he (i wasn't allowed to help) also got the 4.11 box in, the driveshaft in, the clutch sorted out (i'm going to stick with a cable clutch as it requires less fabricating, and i think i prefer the feel of a cable clutch anyway) and when i was leaving at the end of the day they were getting the H6 ready to go into the car... the H6 injectors (tiny things that they are... like 280cc or something) don't have a fuel return, so alan was fabricating one when i left...

now i'll have to leave it up to Al or Miles to update this thread as i won't be able to take pics...

Back to top

#322 Blaeven

The Renowned

Members
1,400 posts

Gender:Male
Location:Sydney

Posted 03 February 2009 - 11:21 AM

lol Luke, like you don't know I'm a lazy auto cruiser and I've no regrets with that decision.

Tristan, have you kept the GX badge? Maybe wanna find yourself a "2.2L" badge with the words "honest officer!" after it

as you can see i'll have the H6 engine cover... so i'm gonna go and find an "H6 3.0" badge...

Back to top

#323 B4TT

Soviet Leader

Members
39,547 posts

Gender:Male
Interests:Rodina-Mat

Posted 03 February 2009 - 11:33 AM

Much Goodliness

Looks as though they are working away pretty well on it. Fair bit done. Nice Work

Back to top

#324 ams

Regular Member

Members
29,212 posts

Gender:Male
Location:Fremantle, WA

Posted 03 February 2009 - 11:34 AM

Looks the goods man, what a job! Hope all works out as you'd planned

Ugh i could ramble on for forking days about this stuff.

Back to top

#325 Xon

Regular Member

Members
1,535 posts

Gender:Male

Posted 03 February 2009 - 11:43 AM

Damn that's some speedy work. Coming together nicely Tristan.

I would have gone to the kitchen, collected a brown bag, dropped my dacks, pinched off a loaf in said bag, done up dacks, stickytaped bag, placed bag in envelope, and mailed it right to your face for being such a tool.

It's ok, sometimes when we herp, we also derp.

Back to top

#326 Dylan

Almost gen2 time.

Administrators
4,236 posts

Gender:Male
Location:Sydney

Posted 03 February 2009 - 11:45 AM

Awesome Tristan man! Looking forward to seeing this thing return to NSW. P.S. Get that front bar FAIL fixed.

Back to top

#327 Soop

Suck, squeeze, bang, blow.

Members
3,483 posts

Gender:Male
Location:Shepparton, Vic.

Posted 03 February 2009 - 11:57 AM

Pictures no does work for me. So I'll give you an imaginary thumbs up...

TSM

Back to top

#328 Xon

Regular Member

Members
1,535 posts

Gender:Male

Posted 03 February 2009 - 12:02 PM

Pictures no does work for me.

So I'll give you an imaginary thumbs up...

I'll give you an imaginary inflatable donkey penis.

I would have gone to the kitchen, collected a brown bag, dropped my dacks, pinched off a loaf in said bag, done up dacks, stickytaped bag, placed bag in envelope, and mailed it right to your face for being such a tool.

It's ok, sometimes when we herp, we also derp.

Back to top

#329 SUBARU

Massive Member

Members
2,542 posts

Gender:Male
Location:Melbourne.

Posted 03 February 2009 - 12:57 PM

Nice! Hopefully Al and Miles update the thread regularly with pics.

Back to top

#330 Shiv

Regular Member

Members
4,741 posts

Gender:Male
Location:Sydney, Australia

Posted 03 February 2009 - 03:25 PM

Thats a hell of a lot of work done in such a short time

And you love teh spam you ***** :lol:

Back to top

#331 CRUISN

Doin it my way.

Members
6,970 posts

Gender:Male
Location:Melbourne
Interests:Family, Surfing, Cars.

Posted 03 February 2009 - 04:31 PM

Coming along nicely.

Bet your tingling with anticipation.......

OEM+

Back to top

#332 Blaeven

The Renowned

Members
1,400 posts

Gender:Male
Location:Sydney

Posted 03 February 2009 - 04:39 PM

Coming along nicely.

Bet your tingling with anticipation.......

yes...

yes i am...

Back to top

#333 Soop

Suck, squeeze, bang, blow.

Members
3,483 posts

Gender:Male
Location:Shepparton, Vic.

Posted 03 February 2009 - 04:42 PM

I'll give you an imaginary inflatable donkey penis.

Hmm, boomerang present?

TSM

Back to top

#334 jzk25

Trusted Member

Members
158 posts

Posted 03 February 2009 - 08:14 PM

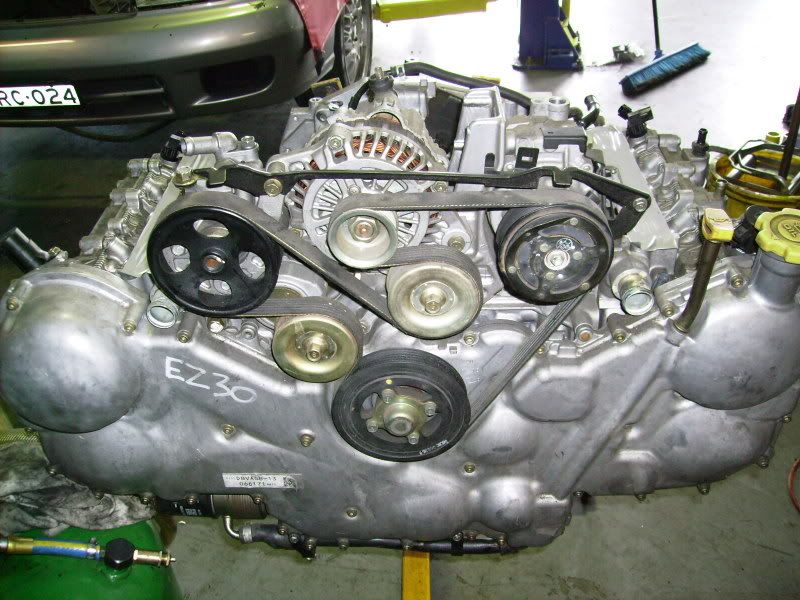

Engine on stand getting prepped for fitment and stripped of wiring and inlet.

Posted Image

Modified fuel rails. EZ30R has a returnless fuel system as std so we have added a return fitting to the rails to go to a conventional regulator.

Posted Image

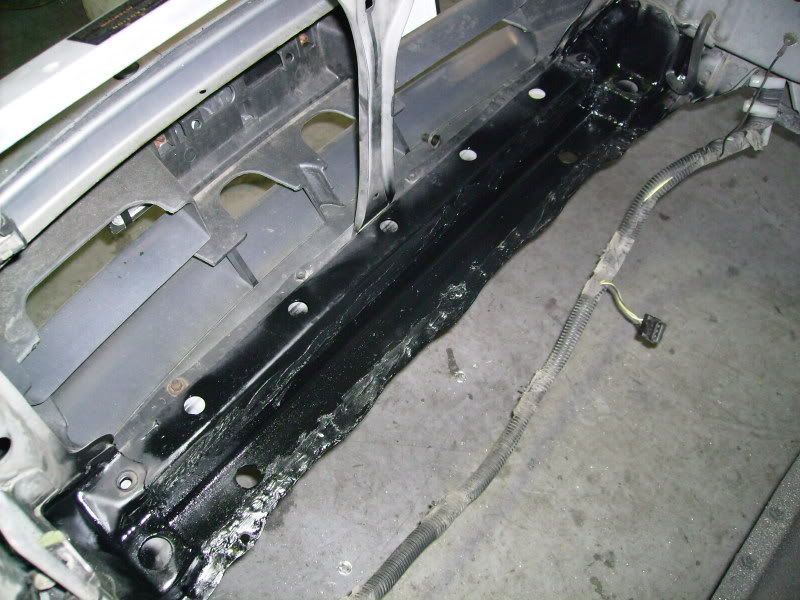

Had to modify the lower radiator support panel to allow the GDB alloy radiator to fit. If you can't tell what's been changed then I must have done a good job.

Posted Image

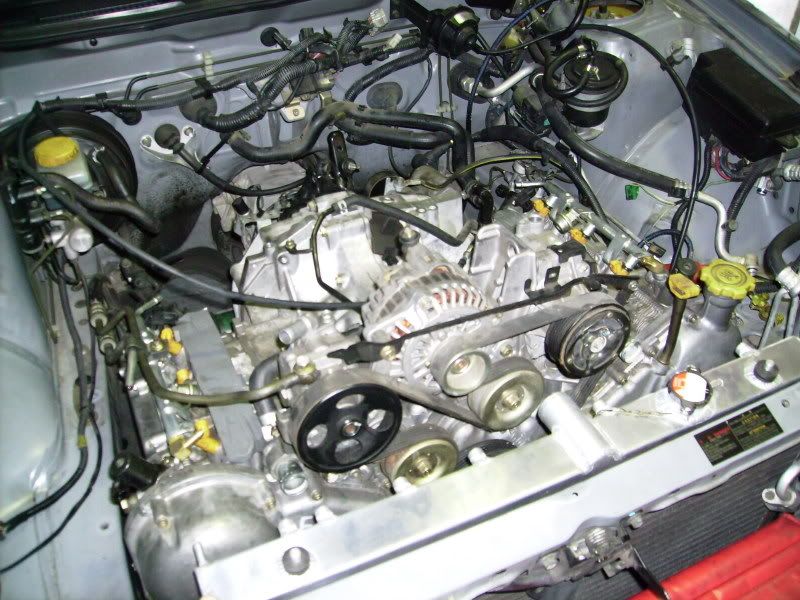

Engine in.

Posted Image

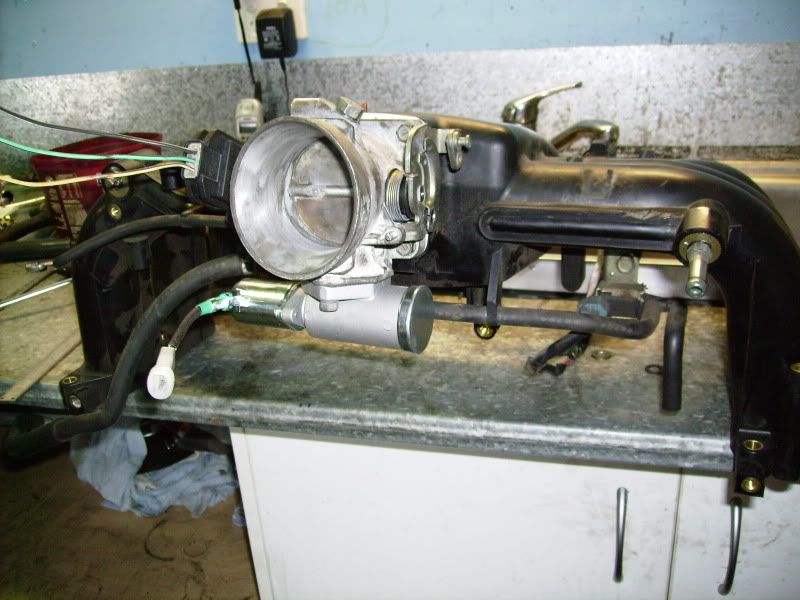

EZ30R has drive by wire electronic throttle as std. We have replaced the E-throttle with a 4l falcon unit. This was chosen for a few reasons. It has the same size throttle blade as std, it has a simple tps and built in idle control motor and is readily available for little cost. I fitted a new idle control motor to avoid any tuning problems from failing old parts. Big bonus with this was that it actually bolted straight on. I was measuring it up to get an adaptor made and it is almost the same bolt pattern, a couple of mm out. Cools.

Posted Image

Manifold on checking clearances for throttle.

Posted Image

Vipec V88 arrives tomorrow and the wiring will begin in earnest.

Back to top

#335 Dylan

Almost gen2 time.

Administrators
4,236 posts

Gender:Male
Location:Sydney

Posted 03 February 2009 - 08:30 PM

Nice Al! Tristan man, bet you can't wait to get this sucker back

By the way, Tristan - I've got a front strut brace coming up for sale if you're interested. White line. I'll talk to you more about it at tomorrow's meet.

Back to top

#336 Blaeven

The Renowned

Members
1,400 posts

Gender:Male
Location:Sydney

Posted 04 February 2009 - 08:39 AM

wow, you guys are progressing quickly... thanks for the update... dyl, you're right... i can't wait to get it back... i'm literally tingling with anticipation...
