Al. Why cable clutch?
It's not a turbo gearbox so clutch actuation is optional. Hydraulic clutch actuation is a lot more troublesome than cable. The change to hydraulic is so it is self adjusting, not because it pushes the clutch in better.
H6 engine
Started by Blaeven, Nov 25 2008 03:56 PM
710 replies to this topic
#341
jzk25
-
- Members
-
- 158 posts
Trusted Member
Posted 04 February 2009 - 01:36 PM
It's not a turbo gearbox so clutch actuation is optional. Hydraulic clutch actuation is a lot more troublesome than cable. The change to hydraulic is so it is self adjusting, not because it pushes the clutch in better.
#342
B4TT
-
- Members
-
- 39,547 posts
Soviet Leader
- Gender:Male
- Interests:Rodina-Mat
Posted 04 February 2009 - 02:06 PM
I guess you would also need to mount the master/slave cylinders too to go hydraulic... do the gen2's have somewhere to do this? I have never looked too be honest.
#343
Xon
-
- Members
-
- 1,535 posts
Regular Member
- Gender:Male
Posted 04 February 2009 - 02:11 PM
The RX has a hydraulic clutch, so yes there is somewhere to mount it!I guess you would also need to mount the master/slave cylinders too to go hydraulic... do the gen2's have somewhere to do this? I have never looked too be honest.
I would have gone to the kitchen, collected a brown bag, dropped my dacks, pinched off a loaf in said bag, done up dacks, stickytaped bag, placed bag in envelope, and mailed it right to your face for being such a tool.
It's ok, sometimes when we herp, we also derp.
#344
jzk25
-
- Members
-
- 158 posts
Trusted Member
Posted 04 February 2009 - 08:25 PM
Progress.
Inlet manifold on, throttle cable anchor bracket made.
Got a box full of bends and flanges to make the extractors. Ended up short changing myself on the mandrel bends so only got one made today.

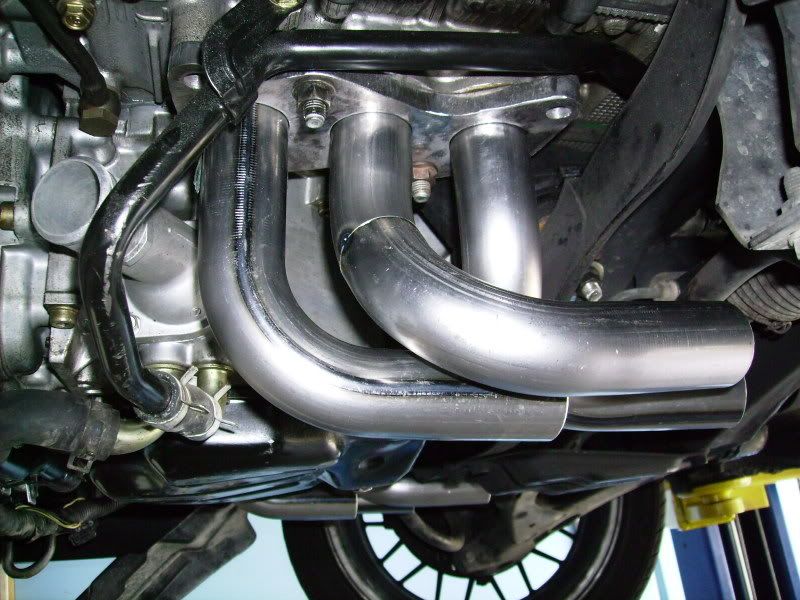

Drivers side headers done. Went with 31" long primaries after some googling. They obviously aren't 100% equal length but are within an inch of each other. The secondary pipes will meet behind the gearbox.
Couldn't do anymore with the headers without more mandrels so I moved on to the radiator. The radiator is a 50mm alloy GDB impreza unit. We chose this because it is a down flow design which suits the dual top hose setup of the EZ30 engine.
I had to cut off the single 38mm top hose outlet and weld on two 28mm outlets. I had a couple of outlets machined up out of alloy pipe. One sits inside the original outlet and the other cuts into the top tank. Welded them both on and welded up the drain bung and header tank bleed as neither are needed.
Done. Got a couple of hoses from Repco to do the job. Had to cut and sleeve one to get the length right. One is an L series leone, the other is corolla AE92 and the bottom is a trimmed down V8 commodore.
This arrived late this arv. Am reading the manual atm. Looks good and the manual is excellent.
Inlet manifold on, throttle cable anchor bracket made.
Got a box full of bends and flanges to make the extractors. Ended up short changing myself on the mandrel bends so only got one made today.
Drivers side headers done. Went with 31" long primaries after some googling. They obviously aren't 100% equal length but are within an inch of each other. The secondary pipes will meet behind the gearbox.
Couldn't do anymore with the headers without more mandrels so I moved on to the radiator. The radiator is a 50mm alloy GDB impreza unit. We chose this because it is a down flow design which suits the dual top hose setup of the EZ30 engine.
I had to cut off the single 38mm top hose outlet and weld on two 28mm outlets. I had a couple of outlets machined up out of alloy pipe. One sits inside the original outlet and the other cuts into the top tank. Welded them both on and welded up the drain bung and header tank bleed as neither are needed.
Done. Got a couple of hoses from Repco to do the job. Had to cut and sleeve one to get the length right. One is an L series leone, the other is corolla AE92 and the bottom is a trimmed down V8 commodore.
This arrived late this arv. Am reading the manual atm. Looks good and the manual is excellent.
#345
SUBARU
-
- Members
-
- 2,542 posts
Massive Member
- Gender:Male
- Location:Melbourne.
Posted 04 February 2009 - 08:54 PM
You guys are flying through this build!
#346
B4TT
-
- Members
-
- 39,547 posts
Soviet Leader
- Gender:Male
- Interests:Rodina-Mat
Posted 04 February 2009 - 11:33 PM
Fark... you really like to work hey... not stuffing around.
#347
Blaeven
-
- Members
-
- 1,400 posts
The Renowned
- Gender:Male
- Location:Sydney
Posted 04 February 2009 - 11:45 PM
wow guys... really impressed with the progress...
thanks again for keeping me posted... it really means a lot to me...
#348
Xon
-
- Members
-
- 1,535 posts
Regular Member
- Gender:Male
Posted 05 February 2009 - 07:54 AM
Dang that's some speedy work. Love the throttle cable bracket, looks pretty much factory.
Do you focus on 1 car at a time Al, or are you also making similar amounts of progress on other cars at the same time?
I would have gone to the kitchen, collected a brown bag, dropped my dacks, pinched off a loaf in said bag, done up dacks, stickytaped bag, placed bag in envelope, and mailed it right to your face for being such a tool.
It's ok, sometimes when we herp, we also derp.
#349
ams
-
- Members
-
- 29,212 posts
Regular Member
- Gender:Male
- Location:Fremantle, WA
Posted 05 February 2009 - 10:10 AM
Ugh i could ramble on for forking days about this stuff.
#350
legacy rsk
-
- Members
-
- 786 posts
Regular Member
- Gender:Male
- Location:Sydney, Fukuoka Japan
Posted 05 February 2009 - 12:10 PM
hey tristan looks like you are feeling pretty good at the moment, and the build is going along very nicely...good luck mate
#351
Blaeven
-
- Members
-
- 1,400 posts
The Renowned
- Gender:Male
- Location:Sydney
Posted 05 February 2009 - 12:59 PM
hey tristan looks like you are feeling pretty good at the moment, and the build is going along very nicely...good luck mate
it's progressing nicely...
i'm very happy with it...
i just can't wait to get my baby back!!
#352
B4TT
-
- Members
-
- 39,547 posts
Soviet Leader
- Gender:Male
- Interests:Rodina-Mat
Posted 05 February 2009 - 02:40 PM
I want one now
#353
Blaeven
-
- Members
-
- 1,400 posts
The Renowned
- Gender:Male
- Location:Sydney
Posted 05 February 2009 - 05:13 PM
I want one now
you think you want one now??
wait till you hear how it sounds... or, if you come to the next meet, how it accelerates
#354
Soop
-
- Members
-
- 3,483 posts
Suck, squeeze, bang, blow.
- Gender:Male
- Location:Shepparton, Vic.
Posted 05 February 2009 - 05:17 PM
All are you going to merge the exhaust, or run it as a twin system right to the tip??
TSM
#355
Blaeven
-
- Members
-
- 1,400 posts
The Renowned
- Gender:Male
- Location:Sydney
Posted 05 February 2009 - 05:20 PM
All are you going to merge the exhaust, or run it as a twin system right to the tip??
we're just going to run it into the 2.25" exhaust that's on the car... the fartyness shouldn't be there, and 2.25" should me more than enough for the 3 liter...
if it restricts power when it's on the dyno, i'll look into it more, but for the time being, we're sticking with the one that's on there...
#356
CRUISN
-
- Members
-
- 6,970 posts
Doin it my way.
- Gender:Male
- Location:Melbourne
- Interests:Family, Surfing, Cars.
Posted 05 February 2009 - 06:39 PM
If it were mine, id definitely be going bigger than merging them into a single 2.25.
Put an X pipe in there and run it twin right through!
OEM+
#357
jzk25
-
- Members
-
- 158 posts
Trusted Member
Posted 05 February 2009 - 07:36 PM

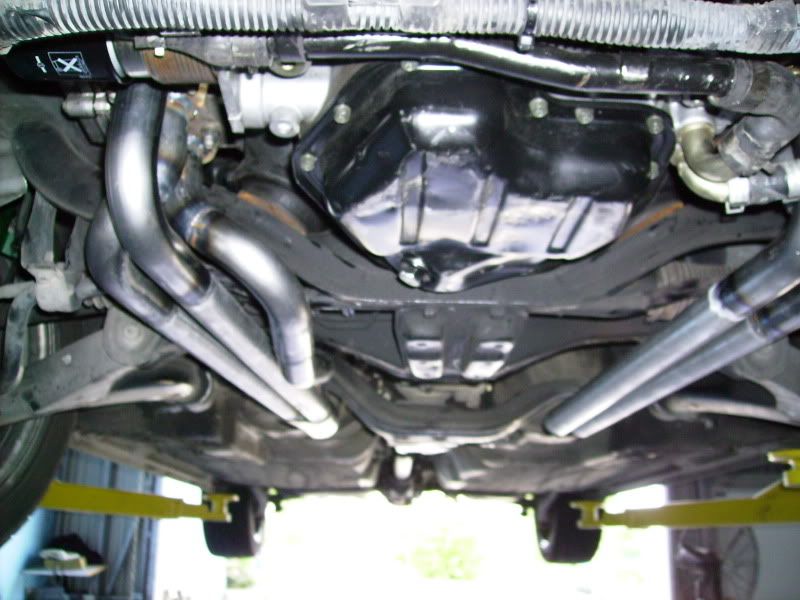

LH headers being welded to flange plate and collector inner welded. The flange is bolted to a 10mm plate to minimise warping.
All done.
The mandrels are all black pipe so will rust pretty quickly without protection. A can of heatproof paint does the job.
All done.
The mandrels are all black pipe so will rust pretty quickly without protection. A can of heatproof paint does the job.
#358
Richo
-
- Members
-
- 7,765 posts
Regular Member
- Gender:Male
- Interests:Not the internet
Posted 05 February 2009 - 07:39 PM
How long (est?) till it gets ticked over for the first time ?
Stuff goes here
#359
Xon
-
- Members
-
- 1,535 posts
Regular Member
- Gender:Male
Posted 05 February 2009 - 07:47 PM
Mmmmm exhaust looks yummy...
I would have gone to the kitchen, collected a brown bag, dropped my dacks, pinched off a loaf in said bag, done up dacks, stickytaped bag, placed bag in envelope, and mailed it right to your face for being such a tool.
It's ok, sometimes when we herp, we also derp.
#360
Soop
-
- Members
-
- 3,483 posts
Suck, squeeze, bang, blow.
- Gender:Male
- Location:Shepparton, Vic.
Posted 05 February 2009 - 07:50 PM
Al, do you think it would gain anything from a twin system?
I know how it effects V8's. I'd apply the same theory to the h6 and expect similar results.
Do you think it would have the same effect?
TSM
